Anvil type spherical bearing swaging tools
(both removal and installation sets)
manufactured for standard and custom American Series Bearings


1201 Centre Street Easton, PA 18042
Phone: (610) 515 0550    ·    Fax: (610) 515 0456
Email HPVE


Double Anvil Swaging Dies

The tool set is for use with any structural housing material and is designed only for bearings containing a grooved outer race.

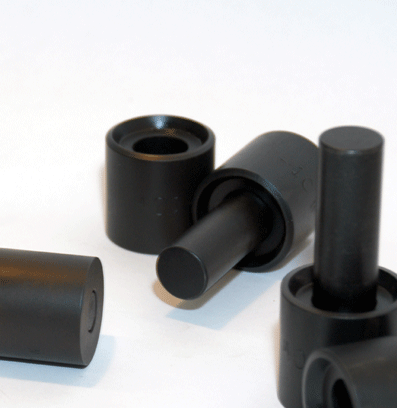

A staking tool set consists of two starter anvils, two finishing anvils, and two  mandrels.   A set of anvil dies swage a portion of the race over chamfers on the accommodating housing bore, and as a result both sides of  the bearing are staked simultaneously.

This swaging method conforms to both National Aerospace Standard NAS 0331 Method 100 and Military Standard MIL-STD-1599.

Die sizes are in stock for sizes -3 to -16  in both narrow and wide form. High misalignment sets are in stock for sizes -4 to -12.

Most spherical bearings built to American Bearing Standards can be swaged with these tools.  Aurora Bearing Company ANC-*TG, AWC-*TG, PNB-*TG, PWB-*TG, HAB-*TG series; NHBB ABT-*V, ABWT-*V, and ABYT-*V can all be swaged using these tools.  Bearings conforming to MS-14101, MS-14103, and other standard specification bearings can be staked as well.

Spherical Bearing Mfg PN to HPVE Installation Tool PN Crossover Table








Removal Tools for Swaged Bearings

The removal tool set is for use with any structural housing material and is designed only for bearings containing a grooved outer race.

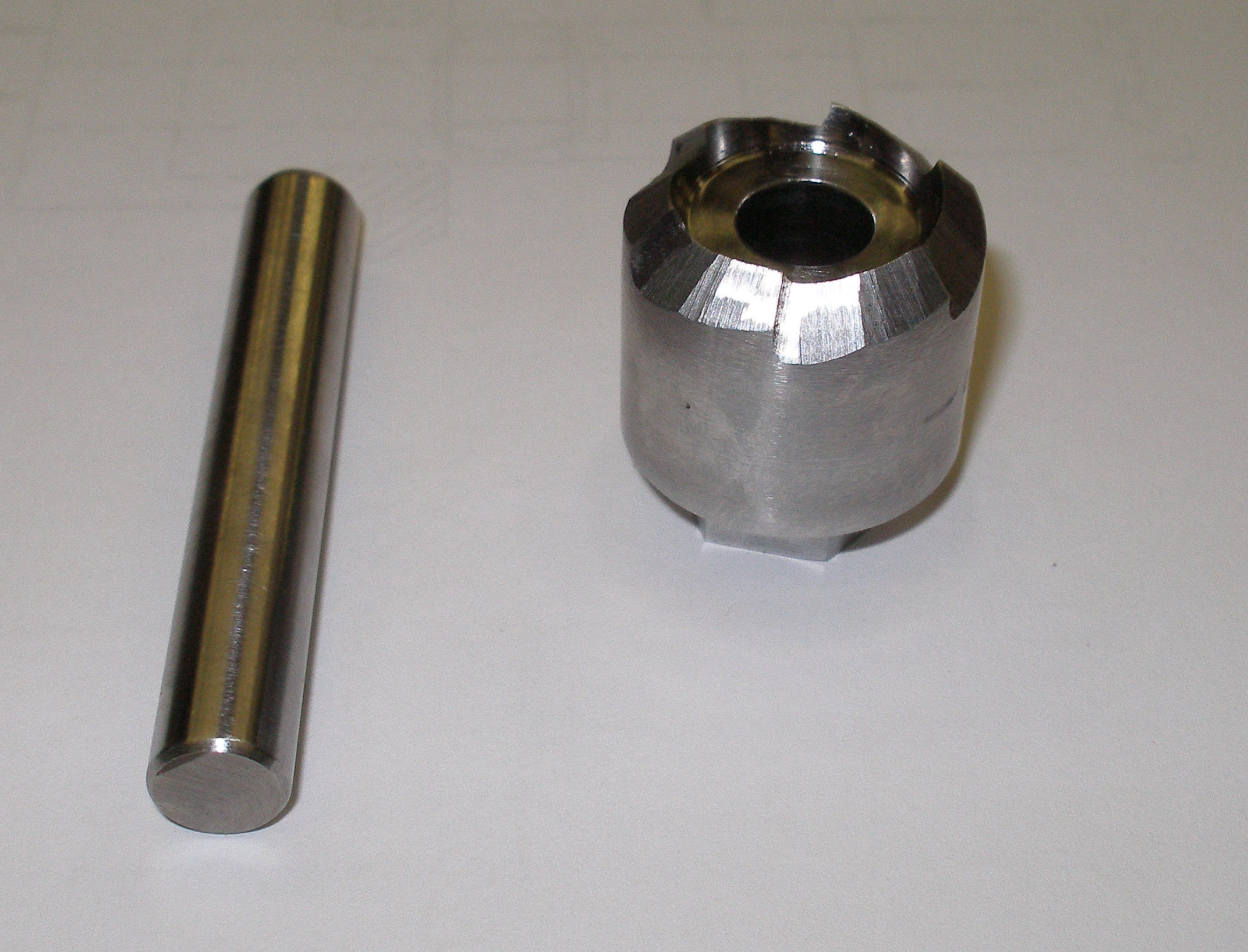

A removal tool set consists of a cutter, a small installation tool, a base installation tool, and two mandrels.   The cutter is designed to easily remove sufficient material from the swaged bearing edge using only rotation with hand tools so that the bearing can be pressed out with a precision vise or press.

Note that this method preserves the housing integrity by removing only enough of the bearing's swaged rim to allow the bearing to be pressed out.

Spherical Bearing Mfg PN to HPVE Removal Tool PN Crossover Table




Special non-standard dies can be manufactured in a four week lead time. Expedited service is available.

Please call us with any of your grooved outer race press staking needs.  We design and manufacture these products in Easton, PA, USA and would be happy to accommodate your specific needs.
